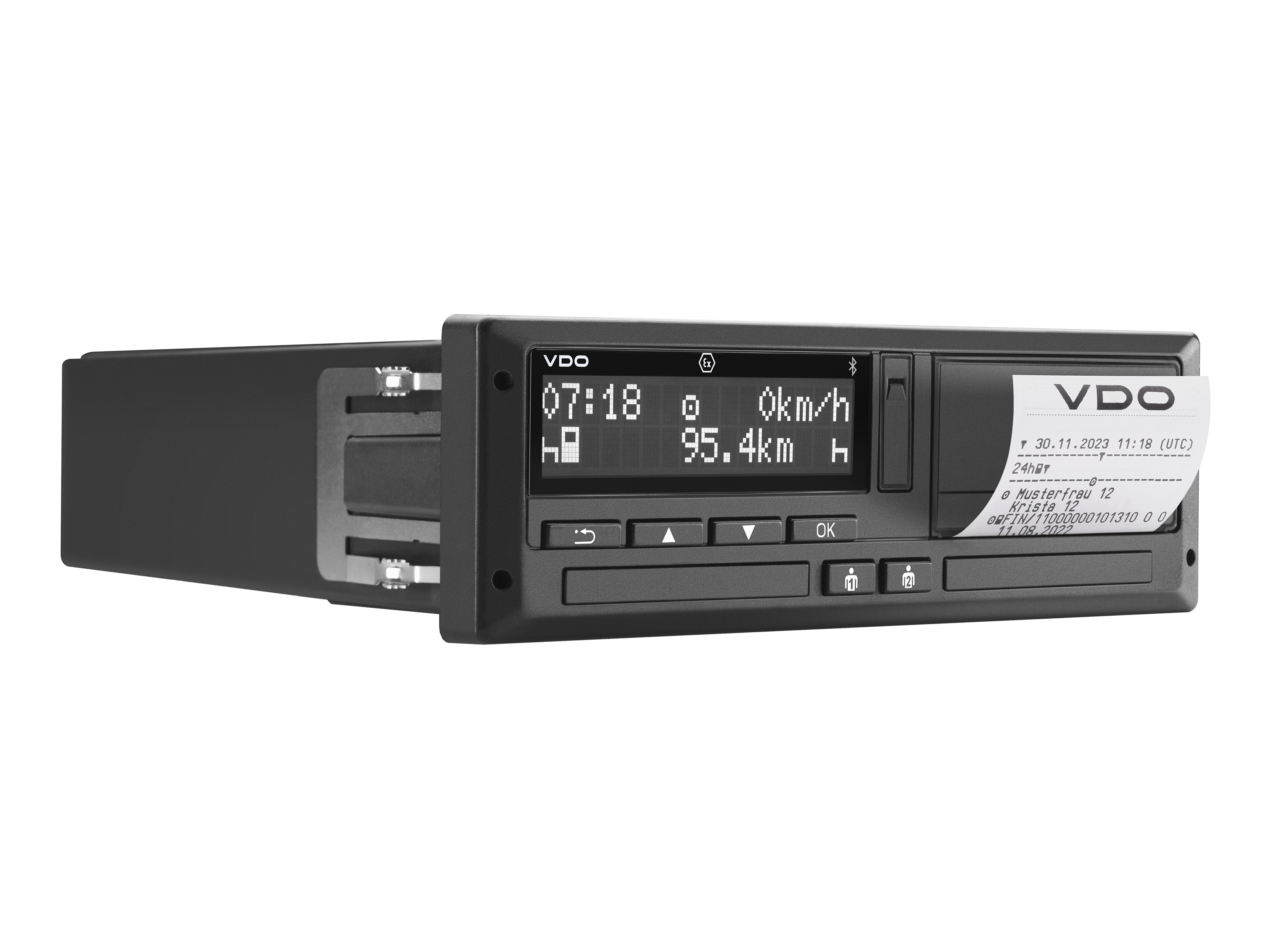

Side view of a VDO DTCO 4.1 with printout

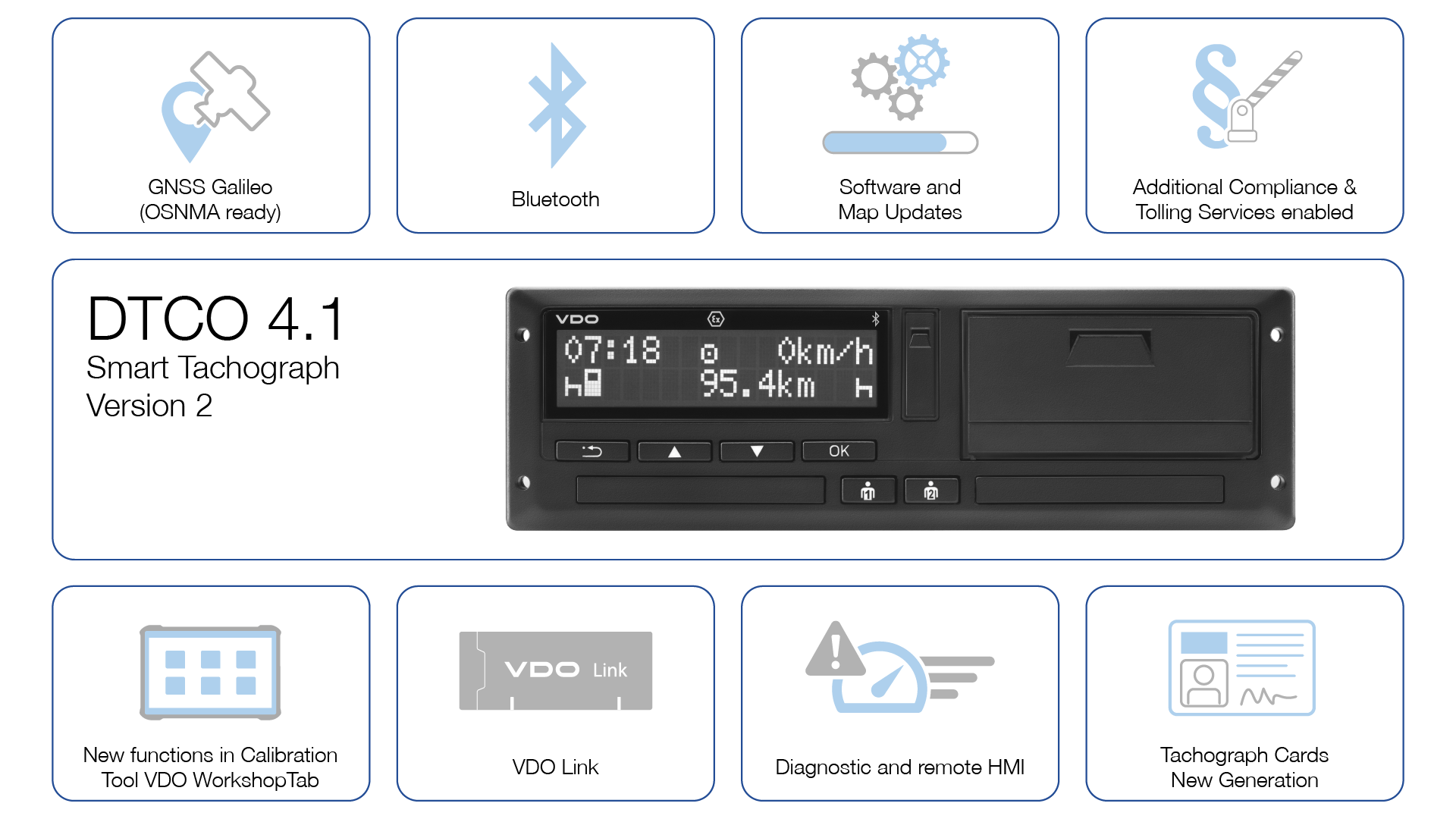

DTCO41-Visual-EN-S
DTCO41-Visual-EN-S
zoom-btn

THE DTCO 4.1 - MANDATORY AND USEFUL AT THE SAME TIME

The regulations of the EU Mobility Package 1 require new control devices, the so-called 2nd version of the smart tachograph. The DTCO 4.1 fully complies with these legal requirements while retaining the familiar operating concept, so drivers hardly have to get used to anything new. For vehicles traveling internationally, this device eliminates the previous stop when crossing borders because the DTCO 4.1 automatically registers the border crossing.

The new tachograph must be installed in all newly registered vehicles over 3.5 t by August 21, 2023 at the latest. By July 2026, all commercial vehicles over 2.5 t that carry out international transports must then be equipped with the devices.

CLICK HERE FOR THE PARTNER FINDER
×

The 2nd version of the smart tachograph

  • fully complies with the amendments to EU Regulation 2016/799 as per Implementing Regulation (EU) 2021/1228.8
  • Quickly and easily configurable via DTCO Configuration App
  • Standardized ITS interface for fleet management systems
  • Supports control and data download via Bluetooth®
  • Automatic detection of border crossings
  • Supports extended driving and rest time rules for international journeys
  • Configurable warnings according to Working Time Directive 2002/15 EC
  • Extended input time for manual supplements
  • Future-proof with the legally required update function

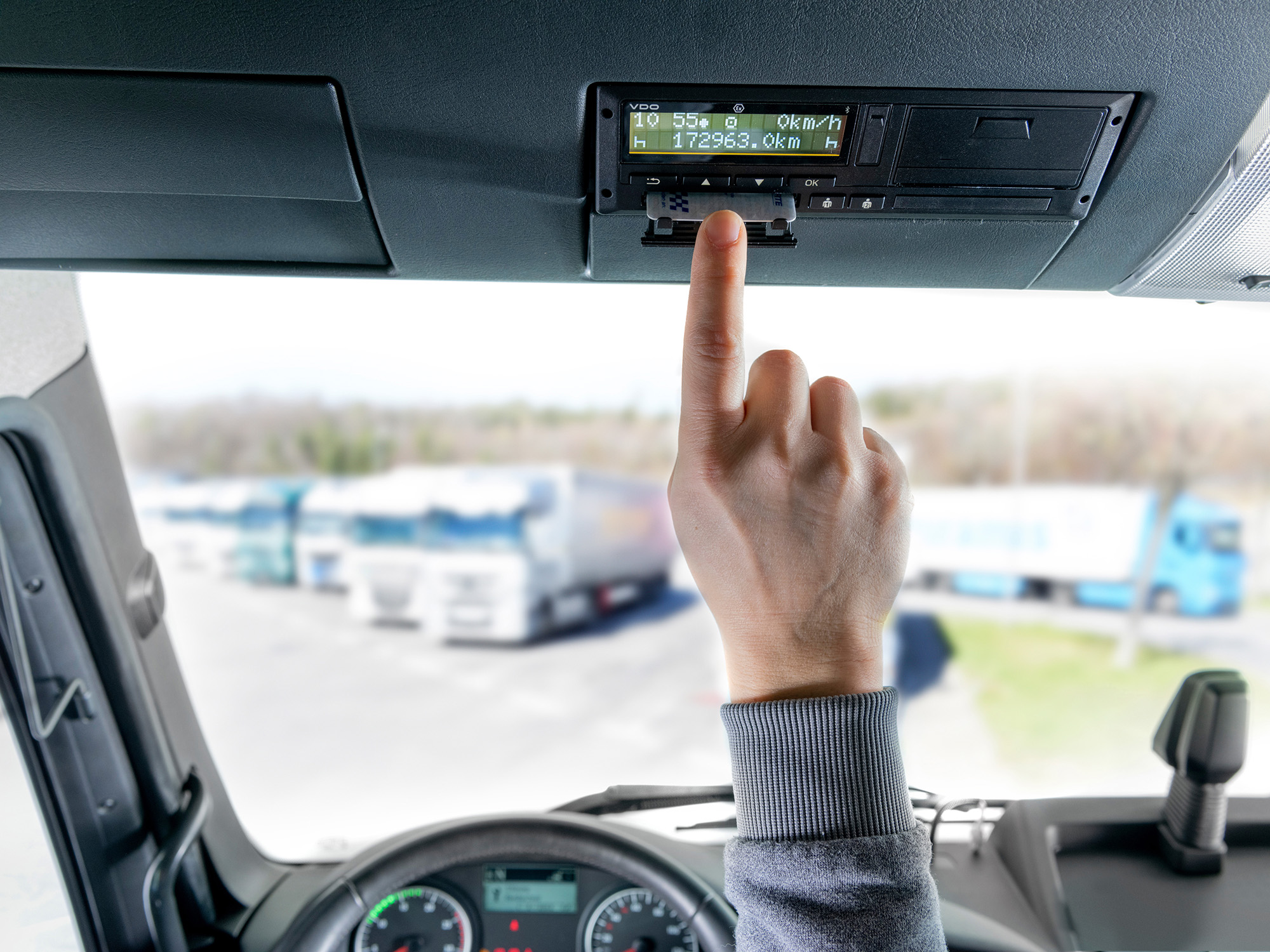

DTCO-4.1-Driver-Card
×

FUTURE-PROOF WITH THE DTCO 4.1

VDO-DTCO-4.1-Feature-Firmware-Updates

Meets all legal requirements. Future-proof thanks to update function.
VDO-DTCO-4.1---Fleet-Services-Icon

Suitable for all common professional fleet management solutions.
Discover VDO Fleet
VDO-DTCO-4.1---Feature-Bluetooth

Data download easier than ever before thanks to Bluetooth® interface.

RELEASE Status of the DTCO

Here you can see which DTCO model offers you which functions and which updates you may need. The version number of your DTCO can be found on the type plate (on the top of the DTCO) or on the technical data printout.

  Smart Tachograph V2 Smart Tachograph V1 Annex 1B
  DTCO® 4.1 DTCO® 4.0e DTCO® 4.0 DTCO® 3.0 DTCO® 2.2 DTCO® 2.1 DTCO® 2.0a DTCO® 2.0* DTCO® 1.4
Bluetooth® interface
Automatic detection of border crossings
Software and map updates
Ländervorauswahl (manueller nachtrag)
Working time counter
extended timeout for manual entry
DSRC and GNSS
Negative display
Configurable parameters via mobile app
Remote Control -  Manueller Nachtrag
Fahrzeugdaten
VDO Counter
"Independent Motion Signal" support according to Annex 1b
Graphic Printouts
Interface for remote download and DTCO® SmartLink
Idle time when ignition off
1-Minute Rule
Advance warning on periodic check and map expiration



*Upgrade of release by workshop to release 2.1 possible.

**Must be activated with update card. (Already activated with service device)

***Must be activated with license key

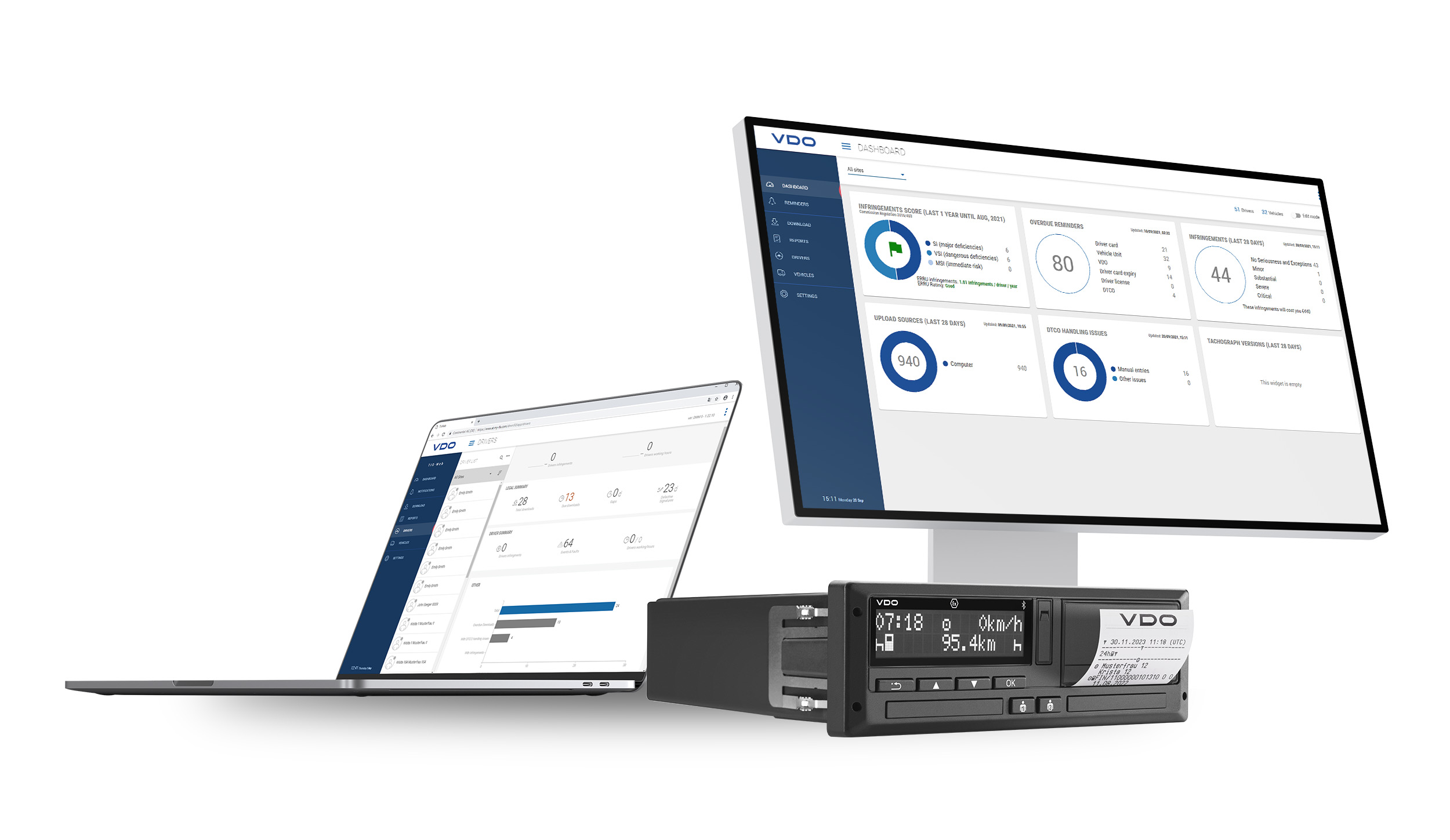

DTCO-4.1-VDO-Fleet-Tachograph-Management

DTCO 4.1 and VDO Fleet Services - the optimal ecosystem

With the new 2nd version smart tachograph and our VDO Fleet Services, we offer you the optimal ecosystem from a single source that supports you in legal and daily routine tasks and optimizes your processes. Use the data from the tachograph in conjunction with the data from the driver card to meet the legal requirements in national and international fleet traffic. Automate data transfer between the DTCO 4.1 and VDO Fleet Tachograph Management in conjunction with our remote download device, the Remote DL 4G, or use the telematics data for our Track & Trace solution, for example. With our Connect and Extract Services, we integrate mixed fleets into our system or offer individual data sets for your own software to give you maximum flexibility.

×
